Introduction

We have a comprehensive range of API services that allow you to seamlessly implement payment processing into your applications. Our APIs cover a range of development environments including file and message based transaction processing, Hosted web payment pages and Web Services. We also cover the full spectrum of card processing environments including Customer not Present, Customer Present, E-Commerce, B2B level 3 enhanced data and travel enhanced data.

Key Concepts

Terminology

Acquirer

A banking institute partnering with the Payment Service Provider to enable infrastructure needed to send/receive and collect card payments. The Acquirer is also responsible for crediting "Supplier/Merchants" bank accounts against monies due.

Authorisation

Authorisation confirms that the card number is valid and that the funds were available at the time the transaction took place. It is not a guarantee of payment.

B2B - Business-to-Business

Term used to describe trading activities between businesses. See also B2C

B2C - Business-to-Consumer

Term used to describe trading activities between businesses and consumers. See also B2B

Buyer

The cardholder requesting the "Supplier/Merchant" to take card payments

Cardholder Not Present

This refers to card transactions that are requested by mail, telephone or over the Internet when the cardholder is not present at the point of sale.

Enhanced Data

Additional data that flows with the transaction back to the buyer. See also Level 3 Data

Level 2 Data

Level 2 data simply refers to the electronic summary invoice data associated with a purchasing card transaction. Standard credit/debit cards are referred to as Level 1.

Level 3 Data

Level 3 data simply refers to the electronic invoice data associated with a purchasing card transaction. Standard credit/debit cards are referred to as Level 1.

Merchant

A services or goods provider to the "Buyer" whom will take card as a method of payment using the tools provided by the "EPOS provider" and "Acquiring Bank".

Merchant ID (MID)

You will require a Merchant ID to accept card payments. The MID links the money processed to your business bank account via an acquiring bank. We are able to assist with competitive merchant service charge rates to new and existing Adflex customers. For more information, please contact us.

Payment Service Provider

A company which provides the "Supplier/Merchant" with the tools needed to take card payments either via a physical terminal, web based portal or file based interchange. For example Adflex is a Payment Service Provider

Purchasing Card

A purchasing card (also abbreviated to pcard or Procurement Card) is a form of company charge card that allows goods and services to be procured without utilising a traditional purchasing process.

PAN

Primary Account Number. A numerical code consisting of 14 or 19 digits both embossed on a payment card. It identifies the Issuer of the card, the card holders account number, and a check digit (Luhn) for authentication.

PCI DSS

The Payment Card Industry Data Security Standard (PCI DSS) is a proprietary information security standard for organizations that handle branded credit cards from the major card schemes including Visa, MasterCard, American Express, Discover, and JCB.

Settlement

This is typically an end of day process that settles authorisations from the day

Supplier

See Merchant

XML

XML is the Extensible Markup Language, a system for defining specialized markup languages that are used to transmit formatted data. XML is conceptually related to HTML, but XML is not itself a markup language. Rather it's a metalanguage, a language used to create other specialized languages.

How Card Processing Works

Buyer Order

Buyer uses their pcard to order goods/services from Supplier.
Supplier Payment Request

Supplier processes the Buyer order and raises a payment request and electronic invoice using an Adflex provided card processing service. Depending on the anticipated number of payments, the supplier has a choice of manually entering the card transaction, using a web portal Adflex Virtual Terminal or by an automatic file upload Adflex Filepay Service.
Acquiring Bank Payment Request

Adflex contacts the Suppliers Acquiring Bank and attempts to authorise the payment request.
Acquiring Bank Payment Response

Acquiring bank sends payment authorised/declined response back to Adflex.
Adflex Payment Response

Adflex sends the Acquiring Bank payment response back to suppliers Adflex payment service.
Acquiring Bank Settlement Payment Request

If the payment has been authorised, at end of day Acquiring Bank requests supplier payment from issuing bank.
Issuing Bank Payment

Issuing Bank transfers funds to the Acquiring Bank.
Acquiring Bank Settlement

Acquiring Bank transfers funds to supplier's bank, typically within 3-4 working days.
Supplier Delivery to Buyer

If the payment has been authorised, supplier then delivers requested goods/service to buyer.
Issuing Bank Invoice Delivery

Issuing Bank delivers suppliers e-invoice to the buyer, typically at end of month.

Processing Environments

Introduction to card processing environments

Card Holder Not Present (CNP/MOTO)
Card Holder Present (Chip and PIN)
e-Commerce

Purchasing Cards

Purchasing Cards, also known as Level 3, help organisations cut costs and improve cash flow with the added benefit of a more streamlined procurement process. A Purchasing card is very similar to a company charge card, but with one crucial difference; the payment request is associated with an electronic invoice.

The electronic invoice offers major benefits to the buying organisation, that include improved administration, visibility and analysis. Typically, the buyer will use their purchasing card to procure goods or services from a supplier, the supplier, in turn, will redeem the payment and enter invoice data at the same time.

Knowing the anticipated volumes up front will determine whether the supplier opts for a manual web-based card processing system (Adflex Virtual Terminal), or an automated system using a transaction file outputted from your accounts system and uploaded to the Adflex Filepay Service. Alternatively, you may wish to integrate with Adflex, using our Developer APIs, or except payments online using the Adflex Hosted PayPage.

To ensure a smooth setup process, Adflex will manage and guide you through each step and provide advice and help where needed. Our fundamental objective is to minimise any impact on your business and get you up and running as quickly as possible.

Before you get started, we highly recommend you familiarise yourself with how card processing works.

Considerations

To implement a successful card processing project, you must consider the following points. Failure to do so will inevitably result in delays and frustrations later on.

Before reading this section, please ensure you are familiar with card processing terminology

Understand the buyer requirements - Typically, the buyer will have specific needs with regards to how you process their card. The below are some questions you should ask the buyer.

What type of card will the buyer be using? The options are standard credit/debit cards (also known as level 1), Visa Purchasing Card, MasterCard Purchasing Card, Amex CPC Purchasing card (known as Level 3). Or other.
If the buyer is using a purchasing card, what data are you expected to capture at the point of sale? For example, Cost Centre, Purchase Order Number, Line details etc.
What are the expected number of invoices and the number of lines that you will be expected to process?
If purchasing card, the relationship between the order and the supplier invoice with regards to the number of lines, line values and total number of lines per invoice
Transaction currencies used.

How to choose the appropriate Adflex Card Processing solution - Knowing the anticipated volumes up front will determine whether you opt for a manual web-based card processing system (Adflex Virtual Terminal), or an automated system using a transaction file outputted from your accounts system and uploaded to the Adflex Filepay Service. Alternatively, you may wish to integrate with Adflex, using our Developer APIs, or except payments online using the Adflex Hosted PayPage.

Understand how purchasing cards work - Processing a purchase card transaction requires that the supplier invoice is entered at the same time as the payment request. Please refer to how card processing works for a complete description of the process.

Buyer VAT Reclaim - If the buyer is reclaiming VAT from the purchasing card transaction, the supplier should not send an invoice from their existing in-house accounting system, or at least ensure this invoice is marked with "Electronic Invoice Sent, Not for VAT Reclaim."

Understanding the payment cycle - A typical card transaction payment cycle is as follows;

The buyer places an order.
The supplier processes the order using an Adflex provided payment system entering the invoice information at the same time.
Once the transaction is authorised, the supplier receives payment with 3-4 working days.

Understanding Responsibilities Please refer to Contractual Relationships Roles and Responsibilities.

Acquiring Bank Payments - If non-UK, you may need to consider net settlement / cut off times / bulked transactions etc.

Monitoring - Card transactions can fail, this may be due to insufficient funds, disallowed supplies or merely an error.

Reconciliation - Adflex ensures commitments are in place to provide consistent support and make the process of payment initiation and acceptance as simple as possible. Using the Adflex Report Manager enables clients to view, print and export real-time transaction reports.

Contractual Relationships

Acquirer

A global banking specialising in providing card acceptance to "Supplier/Merchants" through their partnership with the Payment Service Provider.

Responsibilities include:

Setup of merchant within their systems and registration with the "Scheme/Association"
Ensure transaction requests received from "EPOS provider" are passed through to the "Scheme/Association" for authorisation by the "Issuing Bank"
Collect payments from the "Issuing Bank" and settle "Supplier/Merchant" bank accounts for monies due
Provide support to the "Supplier/Merchant" on enquiries relating to receipt of monies charged on the card

Contractual Relationships

Adflex (Payment Service Provider)

Specialises in analysing your business processes and creating a cohesive system that delivers control back to the decision makers.

Responsibilities include:

Consultation with the "Supplier/Merchant" to scope best card service model of their business
Consultation on documentation needing to be completed for card enablement
Configuration and installation for card technology enabling the "Supplier/Merchant" take card payments
Support of software/process belonging to the direct relationship between them and the "Supplier/Merchant"
Ensure transactions are passed between the "Supplier/Merchant" and "Acquiring Bank" for card authorisations
Collection and submission of settlement to "Acquiring Bank" for transactions collected during the trading day

Buyer

The following are the roles and responsibilities of the "Buyer" relating to a card payment.

Ensure all cards have the correct limit to cover "Supplier/Merchant" expenses
Ensure the "Supplier/Merchant" is given clear details of invoice information needing on transaction
Ensure the "Supplier/Merchant" is aware when the card can be charged
Ensure the "Supplier/Merchant" is given new card details as needed
Notify "Supplier/Merchant" of any charges which require further clarification

Supplier/Merchant

The following are the roles and responsibilities of the "Supplier/Merchant" relating to a card payment.

Ensure all documentation is completed accurately as required by the "EPOS provider" or "Acquiring Bank"
Ensure all invoice data is present on transaction as per the agreement with "Client"
Ensure card is only charged in accordance with the approval from "Client"
Monitor transactions and raise issues regarding card declines with "EPOS provider" or "Client"
Work with "Acquirer" to ensure all charges made on the card settled with their bank account

Issuer

The following are the roles and responsibilities of the "Issuing Bank" relating to a card payment

Provide cards as requested by the "Buyer"
Settlement of funds with the "Acquirer"
Provide reporting and statements to "Buyer" on all charges

Adflex Filepay Service

For suppliers who need to accept Purchasing Cards but do not want to introduce any software changes, Adflex have developed a flexible FilePay Service.

Without making any changes to their existing systems, most suppliers are able to export data in some form e.g. csv files, e-invoices, custom reports or even by way of an intercepted printer file. Adflex are able to analyse this data and map it to the VGIS and LID format filling in any gaps with default values and rules based look ups

By involving the cardholder in the setup process we can also ensure that certain key fields i.e. cost centres, purchase order numbers etc. are always populated correctly. This means that the cardholder always receives consistent quality data

File interchange

Even legacy systems are often able to produce simple csv exports or customised reports which can be used to authorise card transactions.

Fewer errors

Removing the need to manually key purchasing card transaction information means that the data provided to the cardholder will be accurate, which in turn means fewer queries.

Minimal expertise required

Production of a simple delimited file can usually be done in house without involvement of any IT resource.

Adaptable

Adflex are able to accept files in a wide range of formats and can even be customised to your own specific format if required.

Adflex Filepay Service is aimed at merchants who need to be able to accept card payments including Level 3 purchase cards (VGIS/MCLID/AMEX CPC). It performs two main functions:

Financial – The buyers purchase card will be charged for each invoice that is processed; All funds will be settled into your existing credit card merchant account.
Management Information – Level 3 electronic invoice information will be relayed to the buyer via the bank network. Your invoices will be received electronically and no paper based invoice is required. This is a HMRC approved invoicing process.
Adflex Filepay Service is ideal in the following situations:
The merchant is unable to (or does not want to) develop a custom interface to the Adflex Payment Gateway (APG).
Time constraints do not allow development of a custom interface to the APG.
IT restrictions do not allow modification of existing systems to interface to the APG.
IT restrictions may forbid the use of 3rd party software.
You are already producing a consolidated invoice file and do not want to change from this.

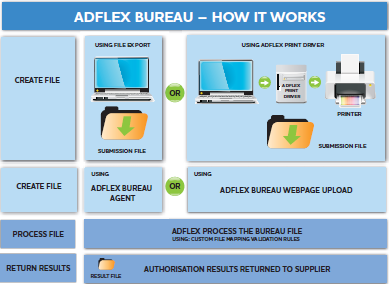

5.1 How does the Adflex Filepay Service work?

The process is simple:
1. Export the transaction information and create a Request file (.req).
2. Upload the Request file to Adflex via our Filepay Web Upload service.
3. Adflex will return a Response file giving the authorisation results via email.
4. Either import the Response file to update your GL or manually update them.

5.2 What file formats can you accept?

You can either:
1. Use a file format as determined by Adflex (see 'Standard File Format' section).
2. Use a file in a format of your own choice. We are able to accept files in a wide range of formats including XLS, CSV, XML, PRN etc. We are happy for you to send us a sample file so that we may check it for suitability.

5.3 Security

Buyer card information is pre-registered using Adflex Card Registration Service (ACRS). This simple web page allows you to enter your buyer’s name, invoice address, card number, card expiry, cost centre codes etc. onto Adflex’s PCI DSS compliant card vault. A ‘Token’ is then issued which is used as a look up to this information which removes the need for sensitive information to be included in your upload file.

5.4How do I upload the file?

There are a number of ways to upload your file including:
1. Windows/Linux/Java service agent – Supplied by Adflex
2. Secure email

Once processing is completed, two Response files will be delivered back to the Response folder. One file is a human readable processing summary, and the other is a delimited data file designed to be imported into your back office system.

Getting Started with Adflex Filepay Service

Here is a check list to get you started

Choose the file format you wish to use
Choose the file upload option you wish to use

CSV Standard Level 3 Request File Format

Please note all monetary and quantity fields must be zero to positive values. Negative values will be rejected

Header
Field No	Field Name	Type	Size	Mode	Description
1	PFGID	String	30	M	Your Adflex Account Number - provided by Adflex when you sign up
2	DocumentType	String	1	M	I=Invoice, C=Credit
3	InvoiceNumber	String	6-12	M	Invoice Number. Must be unique and between 6-12 characters
4	DocumentDate	Date	10	M	Invoice Date. Formatted as YYYY-MM-DD e.g. 2015-06-02
5	CostCentre	String	80	O	Cost Centre
6	BuyersRef	String	80	O	Buyer Reference
7	PONumber	String	35	O	Purchase Order Number
8	BYAccCode	String	50	M	Buyer Account Code - Used to look up buyer details from Adflex configuration
9	BYVATNumber	String	13	O	Buyer VAT Number - Only used for cross border transactions
10	CardToken	String	50	O	Unique key used to look up pre-registered card details or if using real card, then use format: '#22;cardnumber;expirydate as MMYY' For example: #22;4539791001730106;1115 Encryption must be used if using real card numbers
11	PaymentCurrency	String	3	M	Three character ISO 4217 transaction currency code e.g. GBP,EUR
12	Net	Decimal	12.2	M	Document Net Value (after discount)
13	Discount	Decimal	12.2	O	Document Header Discount Value. If no discount, default to 0.00
14	Tax	Decimal	12.2	M	Document Tax (VAT) Value
15	Gross	Decimal	12.2	M	Sum of Net+Tax
Lines
Field No	Field Name	Type	Size	Mode	Description
16	LineNumber	Integer	3	M	Line number - Starting at 1 incrementing by 1 for each line
17	VPartNumber	String	80	O	Part Number
18	VPartDescription	String	80	M	Part Description
19	CommodityCode	String	10	O	Commodity Code - Only use a valid code or leave blank
20	UOM	String	12	M	Unit Of Measure which Qty refers to (Each/Per Metre/Kg etc.). If unit price is zero then set to FOC
21	Qty	Decimal	12.4	M	Quantity of items
22	Unit	Decimal	12.4	M	Unit price of line item
23	LineTotal	Decimal	12.2	M	Sum of (Qty*Unit)-LineDiscount
24	Discount	Decimal	12.2	O	Line discount deducted from sum of Qty*Unit. If no discount, default to 0.00
25	TaxCode	String	1	M	Line Tax Code - S=Standard, E=Exempt, Z=Zero, R=Reduced
26	TaxRate	Decimal	12.2	M	Tax Rate Percentage
27	TaxAmount	Decimal	12.2	O	If TaxTreatment is NLL (Net Line Level) then Sum of ((Qty * UnitPrice)-LineDiscount)*LineTaxRate otherwise set to zero

CSV Standard Level 1 Request File Format

Please note all monetary and quantity fields must be zero to positive values. Negative values will be rejected

Header
Field No	Field Name	Type	Size	Mode	Description
1	PFGID	String	30	M	Your Adflex Account Number - provided by Adflex when you sign up
2	DocumentType	String	1	M	I=Invoice, C=Credit
3	InvoiceNumber	String	6-12	M	Invoice Number. Must be unique and between 6-12 characters
4	TransactionDate	Date	10	M	Date of transaction. Formatted as YYYY-MM-DD e.g. 2015-06-02
5	CostCentre	String	80	O	Cost Centre
6	BuyersRef	String	80	O	Buyer Reference
7	PONumber	String	35	O	Purchase Order Number
8	CardToken	String	50	O	Unique key used to look up pre-registered card details or if using real card, use format as: '#22;cardnumber;expirydate as MMYY' For example: #22;4539791001730106;1115 Encryption must be used if using real card numbers
9	PaymentCurrency	String	3	M	Three character ISO 4217 transaction currency code e.g. GBP,EUR
10	Gross	Decimal	12.2	M	Card amount

CSV Extended Level 3 Request File Format

Please note all monetary and quantity fields must be zero to positive values. Negative values will be rejected

Header
Field No	Field Name	Type	Size	Mode	Description
1	PFGID	String	30	M	Your Adflex Account Number - provided by Adflex when you sign up
2	DocumentType	String	1	M	I=Invoice, C=Credit
3	InvoiceNumber	String	6-12	M	Invoice Number. Must be unique and between 6-12 characters
4	DocumentDate	Date	10	M	Invoice Date. Formatted as YYYY-MM-DD e.g. 2015-06-02
5	CostCentre	String	80	O	Cost Centre
6	BuyersRef	String	80	O	Buyer Reference
7	PONumber	String	35	O	Purchase Order Number
8	BYAccCode	String	50	M	Buyer Account Code - Used to look up buyer details from Adflex configuration
9	BYVATNumber	String	13	O	Buyer VAT Number - Only used for cross border transactions
10	CardToken	String	50	O	Unique key used to look up pre-registered card details or if using real card, then use format: '#22;cardnumber;expirydate as MMYY' For example: #22;4539791001730106;1115 Encryption must be used if using real card numbers
11	PaymentCurrency	String	3	M	Three character ISO 4217 transaction currency code e.g. GBP,EUR
12	Net	Decimal	12.2	M	Document Net Value (after discount)
13	Discount	Decimal	12.2	O	Document Header Discount Value. If no discount, default to 0.00
14	Tax	Decimal	12.2	M	Document Tax (VAT) Value
15	Gross	Decimal	12.2	M	Sum of Net+Tax
16	BYName	String	50	O	Buyer Name
17	BYStreet1	String	50	O	Buyer Address Line 1
18	BYStreet2	String	50	O	Buyer Address Line 2
19	BYStreet3	String	50	O	Buyer Address Line 3
20	BYCity	String	50	O	Buyer Address City
21	BYCounty	String	50	O	Buyer Address County
22	BYPostcode	String	20	O	Buyer Address Zip/Postcode
23	BYCountryCode	String	3	O	Three character ISO 3166-1 alpha-3 Country Code
24	BYContactName	String	50	O	Buyer Contact Name
25	DPName	String	50	O	Delivery Point Name
26	DPStreet1	String	50	O	Delivery Point Address Line 1
27	DPStreet2	String	50	O	Delivery Point Address Line 2
28	DPStreet3	String	50	O	Delivery Point Address Line 3
29	DPCity	String	50	O	Delivery Point Address City
30	DPCounty	String	50	O	Delivery Point Address County
31	DPPostcode	String	20	O	Delivery Point Address Zip/Postcode
32	DPCountryCode	String	3	O	Three character ISO 3166-1 alpha-3 Country Code
33	DPContactName	String	50	O	Delivery Point Contact Name
Lines
Field No	Field Name	Type	Size	Mode	Description
34	LineNumber	Integer	3	M	Line Number - Starting at 1 incrementing by 1 for each line
35	VPartNumber	String	80	O	Part Number
36	VPartDescription	String	80	M	Part Description
37	CommodityCode	String	10	O	Commodity Code - Only use a valid code or leave blank
38	UOM	String	12	M	Unit Of Measure which Qty refers to (Each/Per Metre/Kg etc.). If unit price is zero then set to FOC
39	Qty	Decimal	12.4	M	Quantity of items
40	Unit	Decimal	12.4	M	Unit price of line item
41	LineTotal	Decimal	12.2	M	Sum of (Qty*Unit)-LineDiscount
42	Discount	Decimal	12.2	O	Line discount deducted from sum of Qty*Unit. If no discount, default to 0.00
43	TaxCode	String	1	M	Line Tax Code - S=Standard, E=Exempt, Z=Zero, R=Reduced
44	TaxRate	Decimal	12.2	M	Tax Rate Percentage
45	TaxAmount	Decimal	12.2	O	If TaxTreatment is NLL (Net Line Level) then Sum of ((Qty * UnitPrice)-LineDiscount)*LineTaxRate otherwise set to zero
46	BYPartNumber	String	35	O	Buyer part number
47	BYPartDescription	String	80	O	Buyer part description

XML Standard Request Format

Click here to view adflex-bureau-v1.0.0.xsd Schema Definition

Click here to view adflex-bureau-v1.0.0.xsd Request Schema Documentation

Click here to view adflex-bureau-v1.0.0.xsd Response Schema Documentation

Click here to view adflex-bureau-v1.0.0.xsd Complete Schema Documentation

Custom Request Format

If you are unable to create a Filepay request file in any of the Adflex standard formats, we can look at existing files your system is able to export and create a custom mapping. For Example an invoice report, EDI file etc

Push Payments CSV (Level 1) File Format

Request

Please note all monetary and quantity fields must be zero to positive values. Negative values will be rejected

Header
Field No	Field Name	Type	Size	Mode	Description
1	PFGID	String	30	M	Your Adflex Account Number - provided by Adflex when you sign up
2	DocumentType	String	1	M	I=Invoice, C=Credit
3	InvoiceNumber	String	6-12	M	Invoice Number. Must be unique and between 6-12 characters
4	DocumentDate	Date	10	M	Invoice Date. Formatted as YYYY-MM-DD e.g. 2015-06-02
5	SULookUpCode	String	50	M	Supplier Lookup Code - Used to look up supplier payment details from Adflex configuration
6	PaymentCurrency	String	3	M	Three character ISO 4217 transaction currency code e.g. GBP,EUR
7	Gross	Decimal	12.2	M	Total payment value
8	ClientRef1	String	50	O	Additional references. Note: target system may truncate
9	ClientRef2	String	50	O	Additional references. Note: target system may truncate
10	ClientRef3	String	50	O	Additional references. Note: target system may truncate
11	ClientRef4	String	50	O	Additional references. Note: target system may truncate
12	ClientRef5	String	50	O	Additional references. Note: target system may truncate
13	ClientRef6	String	50	O	Additional references. Note: target system may truncate

Response

Field No	Field Name	Type	Size	Mode	Description
1	ID	Integer	1-9	M	Adflex generated ID (eg. 100025)
2	Batch	String	1	M	Batch number
3	TransactionRef	String	1-12	M	Transaction reference from submitted file
4	TransactionGUID	GUID	1-40	M	Transaction GUID returned from APG
5	Type	String	1	M	Transaction type (I=Invoice, C=Credit)
6	Value	Decimal	12.2	O	Transaction value
7	Currency	String	3	M	Three character ISO 4217 transaction currency code e.g. GBP,EUR
8	CardName	String	50	O	Card Issuer
9	CardScheme	String	50	O	Card Scheme
10	TID	String	8	M	Transaction Terminal TID
11	MID	String	15	M	Merchant ID used to process transaction
12	MsgNo	String	4	M	Authorisation message number (0000-9999)
13	AVSCVC	String	8	O	Transactions AVS/CVC response
14	ReferralMsg	String	20	O	Referral message (eg. "Phone 01277 268755")
15	AuthCode	String	15	O	Authorisation code
16	StatusCode	Integer	2	M	Transaction status code (8=Auth, 9=Decline, 19=Error, 20=ReferralA, 21=ReferralB)
17	ResponseMsg	String	20	O	Response message (Authorised, Declined etc.)

Push Payments XML (Level 3) File Format

Request

Click here to view adflex-bureau-v1.0.0.xsd Schema Definition

Click here to view adflex-bureau-v1.0.0.xsd Request Schema Documentation

Click here to view adflex-bureau-v1.0.0.xsd Response Schema Documentation

Click here to view adflex-bureau-v1.0.0.xsd Complete Schema Documentation

Response

Click here to view adflex-bureau-v1.0.0.xsd Response Schema Documentation

Push Payments JSON File Format

Request

The file format for upload pushpayment data is a JSON string of the following structure.

                                                                  {
                                                                   "batch": "12345",
                                                                   "date": "2020-09-09T11:41:43Z",
                                                                   "pfgID": "12345678",
                                                                   "payments": [
                                                                     {
                                                                       "type": "payment",
                                                                       "method": "CardPAN",
                                                                       "paymentData": {
                                                                         "cardNumber": "448448...",
                                                                         "expiryDate": {
                                                                           "month": 1,
                                                                           "year": 2022
                                                                         }
                                                                       },
                                                                       "reference": "0012458",
                                                                       "accountID": "1234567",
                                                                       "amount": {
                                                                         "currency": "GBP",
                                                                         "value": "12000"
                                                                       },
                                                                       "allocatedDocs": [
                                                                         {
                                                                           "reference1": "6789899",
                                                                           "reference2": "6789899",
                                                                           "reference3": "6789899",
                                                                           "amount": {
                                                                             "currency": "GBP",
                                                                             "value": "12000"
                                                                           },
                                                                           "allocatedValue": "12000"
                                                                         }
                                                                       ]
                                                                     }
                                                                   ]
                                                                  }


Description: batch Batch number you have specified for this file. date Current date in RFC 3339 ISO 8601 date format. pfgID Your Adflex Account Code. payments An array of the payments included in the file. type Transaction type. method Values: "CardToken", "CardTokenLookup", "CardPAN" or "BACS". paymentData An object containing data relating to the recipient of the payment. The object depends on the value of "method", as below:

                                                                  {
                                                                       "method": "CardPAN",
                                                                       "paymentData": {
                                                                         "cardNumber": "448448...",
                                                                         "expiryDate": {
                                                                           "month": 1,
                                                                           "year": 2022
                                                                         }
                                                                       }
                                                                  }


                                                                  {
                                                                       "method": "CardToken",
                                                                       "paymentData": {
                                                                         "token": "XXXX",
                                                                         "cardLast4Digits": "0123"
                                                                       }
                                                                  }


                                                                  {
                                                                       "method": "CardTokenLookup",
                                                                       "paymentData": {
                                                                         "tokenAlias": "XXXX"
                                                                       }
                                                                  }


number Card number of the payee. expiry Expiry date of the payee’s card. reference Payment reference. accountID Account number for the payee. amount An object containing the transction amount. currency Currency to be used in the transaction, expressed in the ISO 4217 three character currency code. value Transaction amount, expressed in the smallest common currency unit, e.g. pence. allocatedDocs A list of documents (e.g. invoices) to pay. reference1 Transaction reference. This must be max 12 alpha numeric and unique. reference2 Second reference (optional). reference3 Third reference (optional). amount Transaction amount, expressed in the smallest common currency unit, e.g. pence. currency Currency to be used in the transaction, expressed in the ISO 4217 three character currency code. value Transaction amount, expressed in the smallest common currency unit, e.g. pence. allocatedValue Transaction allocated amount, expressed in the smallest common currency unit, e.g. pence.

Response

The file format for upload pushpayment data is a JSON string of the following structure.

                                                                  {
                                                                   "batch": "12345",
                                                                   "pfgID": "12345678",
                                                                   "processedDate": "2020-09-09T11:41:43Z",
                                                                   "transactions": [
                                                                     {
                                                                       "paymentReference": "00124567",
                                                                       "accountID": "1234567",
                                                                       "reference1": "9876543",
                                                                       "cardDetails": {
                                                                         "tokenType": "Reusable",
                                                                         "token": "923F5F0A-DAD1-4F1F-872A-DF3266891138",
                                                                         "issuer": "Bank of Banks",
                                                                         "scheme": "VISA",
                                                                         "cardType": "CREDIT",
                                                                         "cardLast4Digits": "0001",
                                                                         "schemeCode": "0000",
                                                                         "enhancedDataType": "VGIS"
                                                                       },
                                                                       "transactionDetails": {
                                                                         "type": "Sale",
                                                                         "statusCode": "Authorised",
                                                                         "subCode": "50001",
                                                                         "statusMessage": "Ok",
                                                                         "authCode": "648090",
                                                                         "messageNumber": "001",
                                                                         "terminalNumber": "11112222",
                                                                         "reference": "00124567",
                                                                         "transactionGUID": "0c9dd246-3b6b-48cf-b49a-262016d97773",
                                                                         "processedDate": "2021-03-13T09:05:55Z",
                                                                         "merchantNumber": "00778899",
                                                                         "captureMode": "MailOrder",
                                                                         "amount": {
                                                                           "currency": "GBP",
                                                                           "value": "12000"
                                                                         }
                                                                       }
                                                                     }
                                                                   ]
                                                                  }


Description: batch Batch number you have specified for this file. pfgID Your Adflex Account Code. processedDate Date processed in RFC 3339 ISO 8601 date format. transactions An array of the transactions included in the file. paymentReference Transaction reference. This must be max 12 alpha numeric and unique. accountID Account identifier. reference1 Transaction reference. cardDetails An object containing details of the card used in the transaction. tokenType Type of card token. token Token for the card. issuer Issuer of the card. scheme Card scheme. cardType Type of card. cardLast4Digits Last 4 digits of card. schemeCode Code for the scheme. enhancedDataType Enhanced data type for the card. transactionDetails Object containing details of the transaction. type Transaction type. statusCode Transaction status code (8=Auth, 9=Decline, 19=Error, 20=ReferralA, 21=ReferralB). subCode Adflex code for the transaction. statusMessage Message containing the status of the transaction. authCode Authorisation code. messageNumber Authorisation message number (0000-9999). terminalNumber Transaction Terminal TID. reference Transaction reference from submitted file. transactionGUID Transaction GUID returned from APG. processedDate Date processed in RFC 3339 ISO 8601 date format. merchantNumber Merchant ID used to process transaction. captureMode Environment in which card was captured. amount Transaction amount, expressed in the smallest common currency unit, e.g. pence. currency Currency to be used in the transaction, expressed in the ISO 4217 three character currency code. value Transaction amount, expressed in the smallest common currency unit, e.g. pence.

Adflex Filepay Service - File Naming Conventions

Request Files

Each Filepay Request file must be uniquely named to prevent duplicate files from being submitted. The bureau service will check and reject a duplicate file and send an email to the recipient notification list which is configured during the initial setup of the service.

The recommended file naming format is;
[YourCompanyName]_[BatchNumber].[FileExtension]

YourCompanyName - Between 1 and 12 characters with no spaces
BatchNumber - Between 6 and 18 alphanumeric with no spaces
FileExtension - Between 1 and 3 alphanumeric with no spaces conforming to MS Windows file system file naming conventions

The BatchNumber doesn't have to be sequential number, although this may help you in tracking and reconciling submissions later on and can be any combination of characters and numbers. For example using a datetime stamp formatted like: 'yyyyMMddHHmmss'

Example File Naming Sequence:

First file name - CompanyName_000001.REQ
Second file name - CompanyName_000002.REQ
Third file name - CompanyName_000003.REQ
and so on..

Other file naming formats can be accommodated, but please consult with Adflex first.

Response Files

Response Files typically have the same name as the Request File but with an extension of .RES

Adflex FilePay Service - File Upload Options

Adflex provide two means of uploading your Filepay Request Files

Manual upload using a web based portal Adflex Web Portal
Automatic upload using a Windows service agent Adflex Bureau Service Agent

Filepay Request File upload using the Adflex Web Portal

Adflex Filepay request files can be uploaded using a web based portal.

Please see the instructions below on how to manually upload a payment file to Adflex.

1. Login to the web portal with the credentials supplied by Adflex

2. Click the ‘FilePay’ tab at the top of the page or click ‘Upload a Payment File’ from the list

3. To upload your payment file, click ‘Choose’ locate your file and click ‘Open’. Finally click ‘Upload’

4. After clicking upload your payment file will automatically process and appear in the file log on the right-hand side of the page.

5. Once the payment file has processed you will receive a notification email from Adflex.

Filepay Request File upload using the Adflex Filepay Service Agent

The Adflex Filepay Service Agent is a Windows32 service agent that can be run on any network or standalone PC/Server with an Internet connection. It's function is to monitor a designated folder for an Adflex Bureau file which matches a configured specification, and to securely deliver the bureau request file to the Adflex Payment Gateway for processing.

Once processing is completed, three response files will be delivered to a designated folder. One file is a human readable (.txt) processing summary, and the other two are machine readable files designed to be imported into the host system, including a (.csv) version of the summary values, and a (.res) itemised results file.

Technical Specification

The service is designed to run as a background service under the Windows Local Service account context and does not have any user interface. We therefore provide a UDP monitor application (PFGUDPMonitor.exe), to monitor the UDP messages sent by the service. The IP address and Port of the UDP messages is set in the configuration and stored on the host machine registry.

Overview

Application - Win32 Service
Database - none required
Certificates - none required
Local registry - [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\adflex.bureau.clientagent_[your PFGID value]\Parameters]
Adflex connectivity - Fixed IP/https connection to Adflex Payment Gateway across the public internet
Access to file folders - Local/UNC. R/O polled folder for request files and R/W access to response, log and archive folders
User account - Run using the Local System account with low privileges
Installation - Code signed MSI installer, downloaded from Adflex
Service activity monitoring - by default UDP activity messages are emitted on 127.0.0.1:600

System Requirements

Microsoft® Windows 2003 Onwards
1 GB free hard disc space
Screen resolution: n/a
Microsoft® Dot Net framework V2.0
Fixed IP public internet connection via https

Installation

Download Adflex Bureau Service Agent
Download Adflex UDP Monitor
Install Filepay Service Agent on target server/PC as administrator
Enter Filepay Service Agent installation Config parameters as supplied in email from the Adflex Support Team
Install Adflex UDP Monitor on required server/PC as administrator
Start Adflex UDP monitor listening on the configured port (By default service emits UDP activity messages to 127.0.0.1:600. Edit service registry entry to change)
In Windows SCM (Services Control Manager) start the Adflex Filepay Service
You should now see messages from the Adflex Filepay service showing on the UDP monitor

Registry Settings

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\adflex.bureau.clientagent_[your PFGID value]\Parameters]

Default Registry Settings
Key	Description	Default (Decimal) Value
DebugFlags	Adflex Reserved	0
PFGID	Adflex assigned account code	Supplied in config email
SyslogIP	UDP activity monitor IP address	127.0.0.1
SyslogPort	UDP activity monitor Port	600
FileWaitSeconds	Number of seconds to wait after file found	3
UploadPollingSeconds	Upload request file polling frequency in seconds	1800
DownloadPollingSeconds	Download response files polling frequency in seconds	1800
ReqFileMask	Request file mask	Filename extension of file to be uploaded - Set to enc if encryption is enabled
ReqFilePath	Request file path	Local file path where request files are uploaded from. Note this must be a path visible by the service agent user permissions. Mapped drives are not supported, UNC paths are supported
ResFilePath	Response file path	Local file path where Result files are saved. Note this must be a path visible by the service agent user permissions. Mapped drives are not supported, UNC paths are supported
LogFilePath	Log file path	Local file path where Log files are saved. Note this must be a path visible by the service agent user permissions. Mapped drives are not supported, UNC paths are supported
ArcFilePath	Archive file path	Local file path where uploaded files are archived. Note this must be a path visible by the service agent user permissions. Mapped drives are not supported, UNC paths are supported
PurgeLogFilesDays	Number of days to keep log files	90
PurgeArcFilesDays	Number of days to keep archive files	90
PFGAccessKey	Adflex assigned	Supplied in config email
SessionTimeOutSeconds	Adflex assigned	900
UserCode	Adflex assigned	Supplied in config email
UserPW	Adflex assigned	Supplied in config email
CheckFileColValueExpression	Adflex assigned	Supplied in config email
CheckFileNameMask	Adflex assigned	Supplied in config email
EncryptDataPK	Public Key	Public key provided by Adflex used to encrypt data
EncryptData	Flag to enable/disable encryption	0=Disabled, 1=Enabled
NotificationEmailListOnError	Optional on file upload error email recipient list, separated by semicolons	example: contact1@myemail.com;contact2@myemail.com
AppID	Application ID	Default value: 4

Customer Message Transaction Service Agent

The Adflex cmts Service Agent is a Windows32 service agent that can be run on any network or standalone PC/Server with an Internet connection. It's function is to monitor a TCP port for a transaction message and to securely deliver the message to the Adflex Payment Gateway for processing.

Technical Specification

Overview

Application - Win32 Service
Database - none required
Certificates - none required.
Encryption - Gold standard PKI encrypted string tunnelled via TLS over HTTPS
Local registry - [HKEY_LOCAL_MACHINE\SOFTWARE\Adflex\CMTS\759617457\your PFGID value]
Local network - Default TCP socket default listening port 5051
Adflex connectivity - Fixed IP/https connection to Adflex Payment Gateway across the public internet
Access to file folders - Local/UNC UDP log folders
User account - Run using the Local System account with low privileges
Installation - Code signed MSI installer, downloaded from Adflex
Service activity monitoring - by default UDP activity messages are emitted on 127.0.0.1:600

System Requirements

Microsoft® Windows 2008 Onwards
1 GB free hard disc space
Screen resolution: n/a
Microsoft® Dot Net framework V4.0
Fixed IP public internet connection via https

Installation

Download Adflex CMTS Service Agent
Download Adflex UDP Monitor
Install CMTS Service Agent on target server/PC as administrator
Enter CMTS Service Agent installation Config parameters as supplied in email from the Adflex Support Team
Install Adflex UDP Monitor on required server/PC as administrator
Start Adflex UDP monitor listening on the configured port (By default service emits UDP activity messages to 127.0.0.1:600. Edit service registry entry to change)
In Windows SCM (Services Control Manager) start the Adflex Filepay Service
You should now see messages from the Adflex CMTS service showing on the UDP monitor

Registry Settings

[HKEY_LOCAL_MACHINE\SOFTWARE\Adflex\CMTS\759617457\your PFGID value]

Default Registry Settings
Key	Description	Default (Decimal) Value
DebugFlags	Adflex Reserved	0
PFGID	Adflex assigned account code	Supplied in config email
SyslogIP	UDP activity monitor IP address	127.0.0.1
SyslogPort	UDP activity monitor Port	600
LogFilePath	Log file path	Local file path where Log files are saved. Note this must be a path visible by the service agent user permissions. Mapped drives are not supported, UNC paths are supported
PurgeLogFilesDays	Number of days to keep log files	90
PFGAccessKey	Adflex assigned	Supplied in config email
AuthenticationToken	Adflex authentication token	Supplied in config email
EncryptData	Flag to enable/disable encryption	0=Disabled, 1=Enabled
EncryptDataKey	Key Store Name	Local machine key store name
EncryptDataPK	Public Key	Public key provided by Adflex used to encrypt data
NotificationEmailListOnError	Optional on file upload error email recipient list, separated by semicolons	example: contact1@myemail.com;contact2@myemail.com

Account Maintenance

Upload Card Registration File Schema

Using Microsoft Excel to create CSV files

If you are using Excel to create a CSV file, card numbers may be treated as real numbers in Excel resulting in rounding or formatting as an exponent number!
To work around this please ensure card numbers are prefixed with an apostrophe '

For further information: http://office.microsoft.com/en-us/excel-help/display-numbers-as-credit-card-numbers-HA010236840.aspx

Card Security

Card submission files uploaded to the Adflex Registration Portal will be delivered using secure SSL encryption and processed on our PCI DSS accredited platform. However, as your submission file will initially be in plain readable text, you must observe the relevant PCI DSS security policies concerning card number security.

The sending of card data by non-secure methods contravenes PCI DSS compliance.

For further information about PCI DSS https://www.pcisecuritystandards.org

How to upload your registered card submission file

You will be provided with login details to our secure web upload portal which will allow you to securely upload your submission files.

For automated upload of submission files, please contact Adflex for details of our client side service agent.

Upload Card Registration Schema

Field	Field Name	DataType	Mode	Comments
1	BuyerContactName	String(50)	Mandatory	Buyer Account Contact Name (the card holder name) formatted as: firstname+space+lastname
2	CardAlias	String(50)	Mandatory	Pre-agreed between client and Adflex during setup and is the code used to look up the card when processing a submitted Filepay transaction file. This can be overridden by the config CardAliasKeyParseRule agreed with Adflex during setup.
3	MID	String(20)	Optional	Merchant ID. If blank, then will use default Adflex configured merchant
4	CardNumber	Number(20)	Mandatory	The card number to register
5	CardExpiry	Number(4)	Mandatory	Card Expiry Date. Format MMYY
6	CardStart	Number(4)	Optional	Card Start Date. Format MMYY
7	CardIssueNumber	Number(2)	Optional	Card issue number
8	UpdateMode	Number(1)	Optional	How the Adflex system is updated. 0 = Raise error if CardAlias is not found 1 = Create CardAlias if not found If blank, then will default to UpdateMode of 1

Testing and Go Live

This section covers what steps are needed in order to bring your development from testing to go live.

The Go Live Process

This section covers what steps are needed in order to bring your development from testing to go live.

Choose your Adflex Service

This Go Live Process is only applicable to the following Adflex services:

Adflex Hosted Pay Page
Adflex Web Services
Adflex Filepay Service
Adflex Chip and PIN API
Adflex Client API

Request an Adflex Test Account

In order to prepare to go live, you must request a APG Test Account from Adflex. This will give you a realistic simulation of the live environment and allow you to develop your application without having to use real cards in the live environment.

Test Cards

We have made available a number of test cards to enable you to test simulated transactions using a wide range of card schemes.

Adflex test cards must only be used with Adflex services and should never be used in any live environment.

Test Scripts

Once you have developed your application to a production level, you must run the relevant test script that will exercise your system prior to going live.

These scripts can be used at any part of your development cycle and the results will be ignored by Adflex until you book the final Go Live Sign-off Testing below.

Go Live Sign-off Testing

When you are ready to go live, please book a go live test slot with Adflex by sending an email to support@adflex.co.uk using the following subject line format: "XXXXXXXX Go Live Test Request" where XXXXXXXX is your Adflex Account Number (PFGID) given to you when your APG Test Account has been issued.

The body of this request email must include the following information;

Your required test date and time
Your testers contact name, email address and phone number
The Adflex Service to be tested
Using Test Script name

Once we have notified you of your allocated test slot, you must run all tests in the chosen test script, adding the transaction outcome and any comments you may have against each test.

If there are any tests you are unable to perform, please state the reason in the testers comments and move onto the next test. For example 'unable to perform this test as order entry screen will not allow invalid card numbers to be entered'

Once you have completed the script, please notify support@adflex.co.uk that you have completed all the tests in the test script.

Go Live Approval Notification

We will notify you within 5 working days of the outcome of your tests with either a go live sign off or a request to redo and/or your comment on any failed tests.

If approved, you are then ready to progress to the next stage, Live Proving.

Live Proving

In order to ensure the end to end connectivity is correct, you must put through a small number of low value real transactions to prove that the expected transaction funds are received in your bank account, and in the case of Purchasing Cards, the buyer is seeing the correct data in their reporting system.

Once the Living Proving stage is complete and you (and if appropriate, the buyer) is happy that all is working ok, you are then ready to go live.

Early Life Monitoring

We strongly advise you to monitor all transaction end to end flows for at least a few weeks to ensure your applications are working as expected.

Test Cards

The following Adflex test cards must only be used with Adflex services and should never be used in any live environment.

Adflex provides you with a customised set of tests to run prior to launch. In addition you may formulate your own tests using any of the test cards from the table below:

The Adflex test environment will respond with a particular outcome based on the card number used.
Use any valid (in date) expiry date.
Use any security code of the appropriate length (3 digits for Visa/MC and 4 for Amex).

Level 1 CREDIT Cards

Outcome	MasterCard	MasterCard 2 Range	Visa	Amex Retail
Auth	5185 5110 0000 0010	2223 0000 1001 1804	4012 0010 3627 5556	3782 8224 6310 005
Decline	5185 5150 0000 0045	2223 0000 1001 0095	4012 0010 3629 8889	3782 8224 6317 000
Refer	5185 5150 0000 0052	2223 0000 1001 0202	4012 0010 3685 3337	3782 8224 6320 004
Error	5185 5110 0000 0002	2223 0000 1001 0194	4012 0010 3698 3332	3782 8224 6319 006

Level 3 CREDIT Cards

Outcome	MasterCard	Visa	Amex CPC
Auth	5569 5100 0000 0018	4715 0570 0000 0107	3742 9048 2911 992
Decline	5569 5000 0000 2296	4715 0570 0000 0123	3742 9048 2907 990
Refer	5569 5000 0000 2312	4715 0570 0000 0164	3742 9048 2920 993
Error	5569 5000 0000 2338	4715 0599 9900 0437	3742 9048 2919 995

Level 1 DEBIT Cards

Outcome	MasterCard	Visa	Visa Electron	Maestro	Intl Maestro
Auth	5573 4899 0000 0028	4137 3356 0011 7780	4844 2155 0011 5643	5033 9619 8900 0008 18	6799 9901 0000 0000 019
Decline	5573 4899 0000 0721	4137 3356 0011 0785	4844 2155 0011 7649	5033 9619 8900 0381 15	6799 9901 0000 0000 076
Refer	5573 4899 0000 2024	4137 3356 0011 2088	4844 2155 0012 0643	5033 9619 8900 0320 19	6799 9901 0000 0000 209
Error	5573 4899 0000 1927	4137 3356 0011 1981	4844 2155 0011 9645	5033 9619 8900 0319 12	6799 9901 0000 0000 191

Test Scripts

Note these test scripts must only be used with Adflex products and services and should never be used in any live environment

Please contact Adflex at support@adflex.co.uk

Appendix

Error Codes

Error Code	Primary Application	Error Description	Severity Level
50001	ERP	Ok	Green
51400	APG	TID Msg Mismatch	Yellow
51401	APG	APACS30: ERROR_CODE_EFT_TXLRC	Yellow
51402	APG	APACS30: ERROR_CODE_EFT_NOCARRIER	Yellow
51403	APG	System timeout	Yellow
51404	APG	Timeout connecting to Acquirer	Yellow
51405	APG	APACS30: ERROR_CODE_EFT_MAXTXRETRY	Yellow
51406	APG	APACS30: ERROR_CODE_EFT_SOFTWAREERROR	Yellow
51407	APG	APACS30: ERROR_CODE_EFT_RXLRC	Yellow
51450	APG	ERROR_CODE_EFT_RAS_SUCCESS	Yellow
51451	APG	ERROR_CODE_EFT_RAS_FAIL	Yellow
51452	APG	ERROR_CODE_EFT_RAS_ALREADY_CONNECTED	Yellow
51500	APG	AP29: No data	Yellow
51501	APG	Missing Acquirer	Yellow
51502	APG	AP29: Invalid target path	Yellow
51503	APG	Invalid MID	Yellow
51504	APG	AP29: File create error	Yellow
51505	APG	AP29: Invalid seg1 tx code	Yellow
51506	APG	AP29: Invalid seg1 expiry data	Yellow
51507	APG	AP29: ERROR_CODE_EFT_SUB29_UPDATELOG_FAILED	Yellow
51508	APG	AP29: ERROR_CODE_EFT_SUB29_FILEWRITE_ERROR	Yellow
51509	APG	AP29: ERROR_CODE_EFT_SUB29_TEST_FAILED	Yellow
51510	APG	AP29: ERROR_CODE_EFT_SUB29_MISSING_AUTH_CODE	Yellow
51511	APG	AP29: ERROR_CODE_EFT_SUB29_INVALID_ISSUE_NO_LEN	Yellow
51512	APG	AP29: ERROR_CODE_EFT_SUB29_INVALID_CARD_NO	Yellow
51513	APG	AP29: ERROR_CODE_EFT_SUB29_INVALID_FTP_PUT_FILE_SRC_PATH	Yellow
51514	APG	AP29: ERROR_CODE_EFT_SUB29_MISSING_29_FILE	Yellow
51515	APG	AP29: ERROR_CODE_EFT_SUB29_CREATE_SCRIPT_FILE_FAILED	Yellow
51516	APG	AP29: ERROR_CODE_EFT_SUB29_WRITE_SCRIPT_FILE_FAILED	Yellow
51517	APG	AP29: ERROR_CODE_EFT_SUB29_FTP_TX_FAILED	Yellow
51518	APG	AP29: ERROR_CODE_EFT_SUB29_FTP_RX_FAILED	Yellow
51519	APG	AP29: ERROR_CODE_EFT_SUB29_FTP_RX_FILENOTFOUND	Yellow
51520	APG	AP29: ERROR_CODE_EFT_SUB29_SUBFILE_NOT_AVAILABLE	Yellow
51521	APG	ERROR_CODE_EFT_LOG_TOT_TX_COUNT_ERROR	Yellow
51522	APG	ERROR_CODE_EFT_LOG_SALES_SUM_ERROR	Yellow
51523	APG	ERROR_CODE_EFT_LOG_REFUNDS_SUM_ERROR	Yellow
51524	APG	ERROR_CODE_EFT_LOG_NET_SUM_ERROR	Yellow
51525	APG	Missing VGIS Data	Yellow
51526	APG	Invalid VGIS Data	Yellow
51527	APG	ERROR_CODE_EFT_CLASS_GEN29_ERROR	Yellow
51531	APG	Invalid Submission File Seq no (<=0)	Yellow
51550	APG	TID Lockout. Please retry in 3 minutes	Yellow
51551	APG	APAC30: ERROR_CODE_EFT_30_MSG_NO_OVERFLOW	Yellow
51552	APG	APACS30: ERROR_CODE_EFT_30_NO_DATA_IN_WRK	Yellow
51553	APG	APACS30: ERROR_CODE_EFT_30_CREATE_AUTH_BATCHHEADER_FAILED	Yellow
51554	APG	APACS30: ERROR_CODE_EFT_30_UPDATE_AUTH_BATCHHEADER_FAILED	Yellow
51555	APG	APACS30: ERROR_CODE_EFT_30_NO_TIDS_AVAILABLE	Yellow
51556	APG	APACS30: ERROR_CODE_EFT_30_AUTH_BATCH_ALL_SKIPPED	Yellow
51557	APG	APACS30: ERROR_CODE_EFT_30_UNSUPPORTED_MSG_TYPE	Yellow
51558	APG	APACS30: ERROR_CODE_EFT_30_INVALID_TERM_TYPE	Yellow
51559	APG	APACS30: TID must equal the original to reverse transaction	Yellow
51560	APG	APACS30: The message number must be one greater than the original transaction to reverse	Yellow
51561	APG	APACS30: Time between the original transaction and the reversal must be less than 30 seconds	Yellow
51562	APG	Invalid TransactionType	Yellow
51563	APG	TID invalid or not registered	Yellow
51564	APG	Only Authorised transactions can be reversed	Yellow
51565	APG	Reversal failed. Transaction has already been sett	Yellow
51600	APG	Create wrk failed	Yellow
51601	APG	File re-name failed	Yellow
51602	APG	Invalid document status	Yellow
51603	APG	Invalid card status	Yellow
51604	APG	In EFT queue	Yellow
51605	APG	Invalid host ERP bank nominal	Yellow
51606	APG	Nothing to do	Yellow
51607	APG	Missing Acquirer	Yellow
51608	APG	Missing card number	Yellow
51609	APG	Missing day phone	Yellow
51610	APG	Missing evening phone	Yellow
51611	APG	Missing postcode	Yellow
51612	APG	In phone hot list	Yellow
51613	APG	In post code hot list	Yellow
51614	APG	In card hot list	Yellow
51615	APG	Card BIN not found	Yellow
51616	APG	Card not supported	Yellow
51617	APG	Card failed LUHN check	Yellow
51618	APG	Found in hot list but Overridden	Yellow
51619	APG	Invalid Expiry Date	Yellow
51620	APG	Invalid Card BIN	Yellow
51621	APG	Invalid service Code	Yellow
51622	APG	Card is ATM only	Yellow
51623	APG	Pin Device required for this card type	Yellow
51624	APG	Prompt for PIN	Yellow
51625	APG	Card not active. Check start/valid from date	Yellow
51626	APG	Invalid PAN length	Yellow
51627	APG	Invalid Issue Number Length	Yellow
51628	APG	Invalid Start Number Date	Yellow
51629	APG	Card does not support keyed entry	Yellow
51630	APG	General error, extra info may follow	Yellow
51631	APG	Error Connecting	Yellow
51632	APG	Session Connection Error	Yellow
51633	APG	Session Connection Exception	Yellow
51634	APG	Winsock BG Socket Exception	Yellow
51635	APG	Socket	Yellow
51636	APG	Socket Socks	Yellow
51637	APG	Authentication error	Yellow
51638	APG	EFT session failure	Yellow
51639	APG	Duplicate card transaction	Yellow
51640	APG	General Client error see ErrorString	Yellow
51641	APG	Encryption error. Transaction failed	Yellow
51642	APG	Invalid payment token	Yellow
51643	APG	Missing authorisation response	Yellow
51644	APG	Process queued transaction error	Yellow
51645	APG	Failed to match transaction reference	Yellow
51646	APG	Failed to find merchant account	Yellow
51647	APG	Transaction status is Cancelled request denied	Yellow
51648	APG	Transaction status is Authorised request denied	Yellow
51649	APG	Transaction status is Declined request denied	Yellow
51650	APG	Check merchant manger. Note must be Numeric.",Inv	Yellow
51651	APG	Check merchant manger.",Invalid Merchant Number	Yellow
51652	APG	Check Acquirer manger field POSID. Note must be N	Yellow
51653	APG	Transaction value is below mininum allowable	Yellow
51654	APG	Transaction value is above the maximum allowable	Yellow
51655	APG	Cashback not supported	Yellow
51656	APG	Missing Transaction Reference	Yellow
51657	APG	Invalid Transaction Reference length	Yellow
51658	APG	Invalid EnhancedDataEncodingMethod	Yellow
51659	APG	Invalid GUID	Yellow
51660	APG	Missing card last four digits	Yellow
51661	APG	Invalid Auth Status	Yellow
51662	APG	Invalid Hold Status	Yellow
51663	APG	Invalid date format	Yellow
51664	APG	ERROR_CODE_EFT_FAILED_STORE_L3DATA	Yellow
51665	APG	Invalid CSC	Yellow
51666	APG	Invalid Transaction GUID for Settle	Yellow
51667	APG	Transaction amount exceeds the original authorised	Yellow
51668	APG	Transaction is marked as settled	Yellow
51669	APG	Can only part settle a Sale 3DS Sale Refund	Yellow
51670	APG	Duplicate Transaction Reference	Yellow
51672	APG	Invalid ISO 4217 Currency Code	Yellow
51673	APG	Merchant account is not setup to support 3DS	Yellow
51674	APG	Cardholder is not enrolled for 3DS	Yellow
51675	APG	Failed to decode 3DS VeRes	Yellow
51676	APG	Invalid Amount	Yellow
51677	APG	Card does not support 3DS	Yellow
51678	APG	3DS transaction failed	Yellow
51679	APG	Authorisation has expired	Yellow
51680	APG	Failed to validate PaRes	Yellow
51681	APG	Invalid EMV Type	Yellow
51682	APG	Invalid TID data	Yellow
51683	APG	Invalid Enhanced Data	Yellow
51684	APG	Account disabled	Yellow
51685	APG	Card must be authenticated using 3DS	Yellow
51686	APG	Invalid Merchant URL	Yellow
51687	APG	Invalid Merchant Name length	Yellow
51688	APG	Invalid transaction Description length	Yellow
51689	APG	Account password expired	Yellow
51690	APG	Account is locked out	Yellow
51691	APG	Error with external 2FA. Please contact support	Yellow
51692	APG	You cannot settle a non-authorised transaction	Yellow
51694	APG	3DS Authorise Missing 3DS Data	Yellow
51695	APG	3DS Lookup Failed	Yellow
51696	APG	3DS Invalid SCA Exemption	Yellow
51697	APG	3DS Message Version Mismatch	Yellow
51699	APG	Invalid test card number	Yellow
51700	APG	General VGIS Exception	Yellow
51701	APG	CoFInvalidFormat	Red
51702	APG	CoFInvalidFormatCofMode	Red
51703	APG	CoFInvalidFormatInitiatorFlag	Red
51704	APG	CoFInvalidFormatEntryMode	Red
51705	APG	CoFInvalidFormatOriginalTxRefGUID	Red
51706	APG	CoFOriginalTransactionNotFoundOrMarkedAsStored	Red
51707	APG	CoFOriginalTransactionWasDeclined	Red
51900	APG	Invalid column values in BatchHeader row	Yellow
51901	APG	Invalid column values in BatchHeader row	Yellow
51902	APG	Invalid column values in SummaryDocLine row	Yellow
51903	APG	Invalid column values in DocHeader row	Yellow
51904	APG	Invalid column values in DetailDocLine row	Yellow
51905	APG	Invalid column values in SummaryDocLine row	Yellow
51906	APG	DocHeader/DetailDocLine validation failed	Yellow
51907	APG	DocHeader/SummaryDocLine validation failed	Yellow
51908	APG	DocHeader/SummaryDocLine validation failed	Yellow
51909	APG	DocHeader/SummaryDocLine validation failed	Yellow
51910	APG	DocHeader/SummaryDocLine validation failed	Yellow
51911	APG	Invalid column values in BatchHeader row	Yellow
51912	APG	Invalid column values in BatchTrailer row	Yellow
51913	APG	Invalid column values in RegisterCard row	Yellow
51914	APG	Invalid column values in DeleteRegisterCard row	Yellow
51915	APG	Invalid column values in Card row	Yellow
51916	APG	Invalid column values in CardByToken row	Yellow
51917	APG	Invalid column values in CardSettle row	Yellow
51918	APG	Invalid column values in VGISDocHeader row	Yellow
51919	APG	Invalid column values in VGISDocSupplier row	Yellow
51920	APG	Invalid column values in VGISDocSupplierHO row	Yellow
51921	APG	Invalid column values in VGISDocSupplierMerchant r	Yellow
51922	APG	Invalid column values in VGISDocBuyer row	Yellow
51923	APG	Invalid column values in VGISDocDeliveryPoint row	Yellow
51924	APG	Invalid column values in VGISDocLine row	Yellow
51925	APG	Invalid column values in VGISDocTaxSummary row	Yellow
51926	APG	Invalid column values in VGISDocSupplierHO row	Yellow
51927	APG	Invalid column values in VGISDocSupplierMerchant r	Yellow
51928	APG	Invalid column values in VGISDocBuyer row	Yellow
51929	APG	Invalid column values in VGISDocDeliveryPoint row	Yellow
51930	APG	Invalid column values in VGISDocSupplierHO row	Yellow
51931	APG	Invalid number of columns	Yellow
51932	APG	Invalid VAT amount	Yellow
51933	APG	Transaction value does not match document value	Yellow
51934	APG	Line calculations are outside tolerance	Yellow
51935	APG	Cannot decode APGLVGIS	Yellow
53000	PFG	AVT Exception	Red
53001	PFG	PFGAdmin Exception	Red
53002	PFG	PFGBureau Exception	Red
53003	PFG	Hosted Pay Page Exception	Red
53004	PFG	Config Exception	Red
53005	PFG	Sproc Exception	Red
53006	PFG	General Method Error	Red
53007	PFG	CMTSException	Red
53008	PFG	AuthenticationException	Red
53009	PFG	GeneralException	Red
53010	PFG	AirPlusException	Red
53011	PFG	DBDirectException	Red
53012	PFG	DuplicateTransactionGUID	Red
53013	PFG	InvalidSessionLifetime	Red
53014	PFG	InvalidTemplateID	Red
53015	PFG	InvalidCardTokenTTL	Red
53030	PFG	Create File Error	Red
53031	PFG	Log Send Error	Red
53032	PFG	No Data Found	Red
53033	PFG	Open Registry Error	Red
53034	PFG	Registry Key Error	Red
53035	PFG	Open DB Error	Red
53036	PFG	Open DLL Error	Red
53037	PFG	Invalid Card String Format	Red
53038	PFG	Invalid Document Type	Red
53039	PFG	Import Documents Failed	Red
53040	PFG	Document Integrity Test Failed	Red
53041	PFG	Documents Integrity Test Failed	Red
53042	PFG	Document Line Sum Error	Red
53043	PFG	Card Data Not Found	Red
53044	PFG	Invalid Document Line Unit Price	Red
53045	PFG	Invalid Document Line Qty	Red
53046	PFG	Missing URI	Red
53047	PFG	Connect To Merchant Failed	Red
53048	PFG	Delete Document Failed Due To Status	Red
53049	PFG	Patch Already Applied	Red
53050	PFG	Cancel Document Failed	Red
53051	PFG	Release Transaction Failed	Red
53052	PFG	Pay Page Validation Failed	Red
53053	PFG	Account Not Status Clear	Red
53054	PFG	Skip Account	Red
53055	PFG	Invalid PSPID	Red
53056	PFG	Invalid Document Tax Treatment	Red
53057	PFG	Invalid Document Discount Treatment	Red
53058	PFG	Invalid Delimiter Count	Red
53059	PFG	User Not Found	Red
53060	PFG	Create Document Enhanced Data Failed	Red
53061	PFG	Create Document MCLID Data Failed	Red
53062	PFG	Document Not Found	Red
53063	PFG	Batch Number Already Assigned	Red
53064	PFG	Invalid Document Gross Amount	Red
53065	PFG	Too Many Document Tax Summaries	Red
53066	PFG	Unknown APG Error	Red
53067	PFG	Invalid Date	Red
53068	PFG	Send Email Failed	Red
53069	PFG	Default Merchant Not Set	Red
53070	PFG	Currencies Not Set	Red
53071	PFG	Merchant Currencies Not Set	Red
53072	PFG	Merchant Account Not Found	Red
53073	PFG	Change User Password Failed	Red
53074	PFG	Session Authentication Failed	Red
53075	PFG	User Password Expired	Red
53076	PFG	User Disabled	Red
53077	PFG	Client Disabled	Red
53078	PFG	User Password Failed Policy Check	Red
53079	PFG	User Locked Out	Red
53080	PFG	User Password Recently Used	Red
53081	PFG	Merchant Currency Not Supported	Red
53082	PFG	Default Currency Not Set	Red
53083	PFG	Unsupported Mode	Red
53084	PFG	Invalid Document TaxRate	Red
53085	PFG	Validation Error	Red
53086	PFG	Skip Document	Red
53087	PFG	Invalid Registration	Red
53088	PFG	Oversize Data	Red
53089	PFG	File Exists	Red
53090	PFG	BIN Cache Data Not Set	Red
53091	PFG	Application Not Assigned To Client	Red
53092	PFG	Merchant Disabled	Red
53093	PFG	Merchant Is Off-line	Red
53094	PFG	Duplicate Account	Red
53095	PFG	Value Is Null	Red
53096	PFG	Payment Token Expired	Red
53097	PFG	Payment Token Exceeds Period Usage Count	Red
53098	PFG	Payment Token Exceeds Period Usage Value	Red
53099	PFG	Payment Token Currency Not Supported	Red
53100	PFG	Payment Token Not Found	Red
53101	PFG	A2P Reason Other	Red
53102	PFG	A2P Reason Not Ordered	Red
53103	PFG	A2P Reason Missing PO Ref	Red
53104	PFG	A2P Reason Not Delivered	Red
53105	PFG	A2P Reason Missing Items	Red
53106	PFG	A2P Reason Incorrect Qty	Red
53107	PFG	A2P Reason Incorrect Value	Red
53150	PFG	ClientOnHold	Red
53200	PFG	Currency Code Not Found	Red
53201	PFG	Country Code Not Found	Red
53202	PFG	Invalid Logon	Red
53203	PFG	File Open Error	Red
53204	PFG	File Read Error	Red
53205	PFG	Directory Not Found	Red
53206	PFG	Config Error	Red
53207	PFG	Invalid Card Data	Red
53208	PFG	Card Amount not equal to Document Gross Value	Red
53209	PFG	Transaction Ref Already Authorised	Red
53210	PFG	Transaction Settle Failed	Red
53211	PFG	Web Form Invalid Control Count	Red
53212	PFG	Sproc Failed To Return Results	Red
53213	PFG	Method Failed To Return Results	Red
53214	PFG	Client Authentication hash match failed	Red
53215	PFG	Message hash match failed	Red
53216	PFG	Invalid TxRefGUID	Red
53217	PFG	Failed to find session key	Red
53218	PFG	ExpiredCardToken	Red
53219	PFG	CardTokenIsInfoOnly	Red
53300	PFG	3DS Exception	Red
53302	PFG	AccountVerification Exception	Red
53303	PFG	Failed GetTransactionMerchant	Red
53304	PFG	Transaction Rule Data Missing	Red
53305	PFG	Transaction Rule Data Exception	Red
53306	PFG	Account Verification Declined	Red
53307	PFG	3DS Issuer Rejected	Red
53308	PFG	3DS Unable To Authenticate	Red
53350	PFG	Paymentlink has been cancelled	Red
53351	PFG	Paymentlink has expired	Red
53400	PFG	SimMidValidationFailed	Red
53401	PFG	SimMidNotFoundInApg	Red
53402	PFG	SimMidAlreadyExistsInApg	Red
53403	PFG	SimMidOnlyApplicableToSandboxEnvironment	Red
54000	PFG	Secret Key not found	Red
54001	PFG	Secret Key expired	Red
54002	PFG	Authentication Key not found	Red
54003	PFG	Authentication Key expired	Red
54004	PFG	Authentication Key usage exceeded	Red
54005	PFG	ResourceID not found	Red
54006	PFG	Resource Permission denied	Red
54007	PFG	Failed to find assigned Default Merchant Account	Red
54008	PFG	API Additional Fields Not Found	Red
54009	PFG	API Service Unavailable	Red
54050	PFG	EMV 3DS Config Problem	Red
54051	PFG	Account Verification Not Supported By Acquirer	Red
54101	PFG	APIRequestHeaderValidationError	Red
54102	PFG	APIRequestBodyValidationError	Red
54201	PFG	AGDefault4XX	Red
54202	PFG	AGDefault5XX	Red
54203	PFG	AGAccessDenied	Red
54204	PFG	AGApiConfigError	Red
54205	PFG	AGAuthorizerConfigError	Red
54206	PFG	AGAuthorizerFailure	Red
54207	PFG	AGBadRequestBody	Red
54208	PFG	AGBadRequestParameters	Red
54209	PFG	AGExpiredToken	Red
54210	PFG	AGIntegrationFailure	Red
54211	PFG	AGIntegrationTimeout	Red
54212	PFG	AGInvalidAPIKey	Red
54213	PFG	AGInvalidSignature	Red
54214	PFG	AGMissingAuthenticationToken	Red
54215	PFG	AGQuotaExceeded	Red
54216	PFG	AGRequestTooLarge	Red
54217	PFG	AGResourceNotFound	Red
54218	PFG	AGThrottled	Red
54219	PFG	AGUnauthorized	Red
54220	PFG	AGUnsupportedMediaType	Red

About GUIDs

Adflex Card Transactions are uniquely tagged with a GUID (Globally Unique Identifier). A GUID is a unique 128-bit number. Specified as a string consisting of eight hexadecimal digits followed by a hyphen, then three groups of four hexadecimal digits each followed by a hyphen, then twelve hexadecimal digits in this format: {XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX}

e.g.

{BA828AFE-0C03-4BC4-AD17-53CF3FDA2014}

Refer to these examples on how to create a GUID

Card Luhn Check

Luhn formula for calculating the PAN check digit. The following steps are involved in this calculation, which applies to any length PAN:

Double the value of alternate digits beginning with the first right-hand digit (low order)
Add the individual digits comprising the products obtained in (a) to each of the unaffected digits in the original number
Subtract the total obtained in (a) from the next higher number ending in 0 (this is the equivalent of calculating the 'ten complement' of the low order digit (unit digit) of the total)
The resultant digit is the PAN check digit that should equal the last digit of the PAN

Note. If the total obtained in (a) is a number ending in zero (30, 40 etc.), the check digit is 0.

For more information on Card LUHN check refer to Luhn Algorithm

Card AVS/CVC Status Response

When is an AVS/CVC check performed?

The AVS/CVC check takes place when a transaction has an amount greater than 0. So therefore will not be triggered when a card is being registered.

If you require a transaction to carry out a AVS/CVC check on a card being registered an alternative solution is to perform a 'card payment and register card'. This will ensure a transaction has been authorised and will trigger the checks.

Note: AVS/CVC settings are applied at account level to a merchant account by Adflex and will be applied across all transactions processed under the merchant account with an amount greater than 0.

Some Adflex APIs give you the opportunity to test the issuers risk response of the authorised transactions CVC and Address verification enabling you to accept or reject the transaction.

If you do not want to accept the risk and reject the transaction, Adflex will attempt a reversal to cancel the transaction.

	Value
Position	1	2	4	8	Description
First Digit CVC					Not Checked
					Match
					Not Matched
					Reserved
Second Digit Postcode Numerics					Not Checked
					Match
					Not Matched
					Partial Match
Third Digit Address Numerics					Not Checked
					Match
					Not Matched
					Partial Match
Fourth Digit Authorising Entity					Card Acceptor
					Acquirer
					Card Scheme
					Card Issuer

Values other than 0, 1, 2, 4 or 8 are not valid in digit positions 1 to 4.

A value of zero in any digit position indicates that no additional information is available

If the Authorising Entity is not known, digit 4 is set to zero and the authoriser is assumed to be the issuer.

Processing of these data elements will be by separate agreement between Acquirers and Card Acceptors.

Card Support Flags

Value (Hex)	Description	Value (Hex)	Description
1	Keyed entry allowed	1000	Reserved
2	Cashback supported	2000	Reserved
4	CSCAVS supported	4000	Reserved
8	VGIS MI function supported	8000	Reserved
10	VGIS tax function supported	10000	Reserved
20	Refunds must go online	20000	Mastercard LID/VAT Summary
40	Reserved	40000	Amex LID
80	MOTO supported	80000	Online Reversal
100	ECOM supported	100000	3DS-MasterCard SecureCode
200	ICC Card has chip	200000	3DS-Verified by Visa
400	Cash Advance supported (ATM)	400000	J Secure
800	Reserved

NOTES

The CardFlags value returned is a 32 bit integer bitmask and this is ANDed using a bitmask value from the above list, where each flag value corresponds to a bit in the 32 bit number

For help on bitmasks refer to
https://www.safaribooksonline.com/library/view/c-cookbook/0596003390/ch04s05.html

Card Scheme Codes

CardSchemeCode	Card Scheme Description	CardSchemeCode	Card Scheme Description
52000	Unknown	52012	GE Capital
52001	AirPlus	52013	JCB
52002	AMEX	52014	LASER
52003	ATM	52015	International Maestro
52004	CREATE	52016	MasterCard
52005	Visa Debit or Visa Delta	52017	Platima
52006	Diners Club	52018	SOLO
52007	DISCOVER	52019	STYLE
52008	Debit MasterCard	52020	Domestic Maestro
52009	EDGE	52021	Visa
52010	Visa Electron	52022	Visa Purchase
52011	IKANO

IMPORTANT NOTES

1. This list will grow as and when new card schemes are added or discontinued and your host system business logic needs to take this into account.

AuthenticationToken

An AuthenticationToken is issued to merchants on setup and provides secure authentication access to Adflex payment Gateway API services.

Off-line Authorisation

Applicable to Web Services only. Off-line authorisations (where the auth code is provided by the merchant and not the issuer) are supported by Adflex, provided that you have agreement with your acquiring bank and Adflex.

To create an off-line authorisation:

Call Authorise() using parameter values
ProcessMode = 1
TID=pipe delimited parameter string of the following parameters:

Field Name	Type	Size	Option	Example	Comments
Ident	A	8	M	TERMINFO	Set to: TERMINFO
Version	N	1	M	1	Set to: 1
TID	N	8	O	22620015	Your Terminal ID
MSG	N	4	O	1452	Msg Number from other system
AuthStatus	N	1	M	8	8=Authorised, 9=Declined
AuthCode	AN	8	O	1234	Your auth code
AuthMessage	AN	20	O	AUTH CODE:1234	Your auth message
AuthDateTime	AN	20	M	2009-02-28 11:55:39	Format yyyy-mm-dd, hh:mm:ss
Online	N	1	M	1	0=Offline Auth, 1=Online Auth gained from other system
Capture Environment	A	1	M	1	1=Mail order, 13=Ecomm
HoldStatus	N	1	M	0	0=Settle now, 2=Settle Later (using Settle/SettleEx)

Example:

TERMINFO|1|22620015||8|1234|AUTH CODE:1234|2009-02-28 11:55:39|1|1|0

Introduction

Key Concepts

Terminology

Acquirer

Authorisation

B2B - Business-to-Business

B2C - Business-to-Consumer

Buyer

Cardholder Not Present

Enhanced Data

Level 2 Data

Level 3 Data

Merchant

Merchant ID (MID)

Payment Service Provider

Purchasing Card

PAN

PCI DSS

Settlement

Supplier

XML

How Card Processing Works

Buyer Order

Supplier Payment Request

Acquiring Bank Payment Request

Acquiring Bank Payment Response

Adflex Payment Response

Acquiring Bank Settlement Payment Request

Issuing Bank Payment

Acquiring Bank Settlement

Supplier Delivery to Buyer

Issuing Bank Invoice Delivery

Processing Environments

Introduction to card processing environments

Purchasing Cards

Considerations

Contractual Relationships

Acquirer

Adflex (Payment Service Provider)

Buyer

Supplier/Merchant

Issuer

Adflex Filepay Service

File interchange

Fewer errors

Minimal expertise required

Adaptable

Getting Started with Adflex Filepay Service

CSV Standard Level 3 Request File Format

CSV Standard Level 1 Request File Format

CSV Extended Level 3 Request File Format

XML Standard Request Format

Custom Request Format

Push Payments CSV (Level 1) File Format

Request

Response

Push Payments XML (Level 3) File Format

Request

Response

Push Payments JSON File Format

Request

Response

Adflex Filepay Service - File Naming Conventions

Adflex FilePay Service - File Upload Options

Filepay Request File upload using the Adflex Web Portal

Filepay Request File upload using the Adflex Filepay Service Agent

Customer Message Transaction Service Agent

Account Maintenance

Upload Card Registration File Schema

Using Microsoft Excel to create CSV files

Card Security

How to upload your registered card submission file

Upload Card Registration Schema

Testing and Go Live

The Go Live Process

Choose your Adflex Service

Request an Adflex Test Account

Test Cards

Test Scripts

Go Live Sign-off Testing
